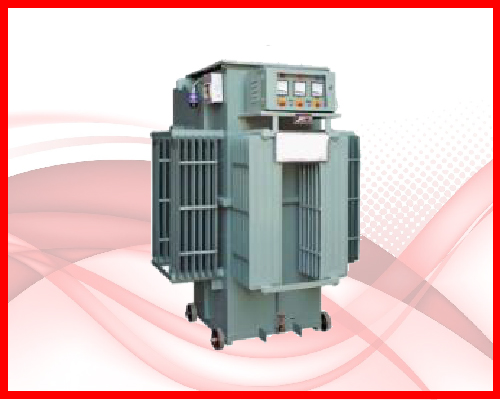

Servo Voltage Stabilizers

Nowadays voltage stabilizers have become mandatory for residential, office, commercial and industrial use. Voltage variation & fluctuation is common problem in every industry. Voltage variation manifests in many different ways due to low voltage or sags. Servo voltage stabilizers increase or decrease the voltage levels and ensure that the proper range of voltage is supplied at the end. We are having Range of 10 KVA to 5000 KVA. GNT make Servo voltage stabilizers resolves 99% of voltage problems automatically and ensures a steady voltage supply round the clock. They are known for their rugged built and maintenance free performance.

TECHNICAL SPECIFICATION OF SERVO VOLTAGE STABILIZER
PARAMETERS	DETAILS
Make	GNT
Rated Power	10 KVA to 5000 KVA
Input Voltage Range	350 To 450 V / 340 – 460 V / 340 – 480 V / 320 – 460 V
Output Voltage	400 Volts + 1%
Type	Balanced / Unbalanced
Frequency	50 Hz
Phases	3
Winding	Copper
Copper	99.97 Purity Copper
Type of Cooling	ONAN (Oil natural air natural )
Temp Rise	30 degree C above ambient
Insulation	Class A For Oil Cooled (as per IS)
Connections	Delta/ Star
Core Type	CRGO
Core Used	M4/M5 Grade ( 0.27 to 0.30 mm Thickness )
Transformer Oil	As per IS : 335, Make : Apar ( Power Oil )
Load Losses	As Per IS
Application	Indoor Type
Mode of Operation	1. Auto Mode 2. Manual Mode • With Help of Raise/ Lower Push Controls • With Help of T Handle, If Motor Fails
Metering	Digital Integrated Display Control Module with Control Relays, Displaying Input Voltage/ Output Voltage/ Output Current, Push Control For Increase – Decrease
Regulator Technology	Columnar design voltage regulator with carbon rollers, wound with heavy duty thick copper strips
Fitting & Accessories	Oil Level Gauge Radiators Rating and Diagram Plate Earthing Terminals with Lugs Lifting lugs Wheels
Terminations	Aluminum Bush Bar
Paint Shade	DA Gray

Description of GNT Servo Voltage Stabilizer

Linear, plus/minus type vertical Rolling Contact Voltage Regulator
In our Regulator we are using heavy section of electrolytic rectangular copper strip instead of copper wire to minimize the losses & increase the efficacy of equipment. We are also using self-lubricating Carbon Roller assemblies instead of ordinary carbon brushes which offers more reliability and trouble free performance of the equipment.
Double Wound Buck/Boost type Series Transformer
In our Buck/Boost transformer we are using CRGO lamination to minimize iron losses and coils of Buck/Boost Transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses for getting better efficiency of the equipment.
Electronic Control Circuit and meter panel
GNT Servo voltage stabilizer consists of very simple electronic control circuit for monitoring and controlling voltage, repair & maintenance of which is very easy. The regulator and Buck/Boost transformer are oil cooled, housed in same or separate sheet steel tanks. Radiators are provided for effective cooling. The coils of voltage regulator & Buck/Boost Transformers are vacuum impregnated and oven dried as per IS
